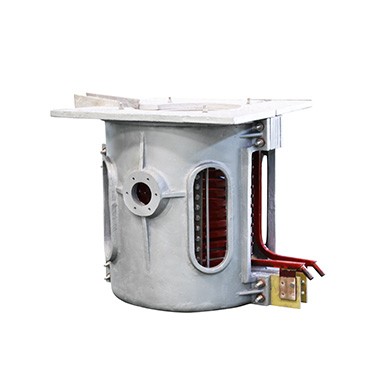

Induction Steel Melting Furnace


Capacity: 0.1T-15T Melting time: 40mins-60mins Work Power: 100-10000kW Meltable material: Scrap iron, steel, stainless steel Melting body material: Aluminum shell or steel shell Configuration: Melting furnace body, power cabinet, capacitor, reducer, control box

Application:

Hongteng induction melting furnace for steel has a wide range of applications.

Smelting of Steel Materials

The induction furnace for steel melting is mainly used for the smelting of steel and iron materials, such as cast iron, stainless steel, alloy steel, etc. It uses the principle of electromagnetic induction to generate alternating current in metal materials through induction coils, thereby rapidly heating the metal materials to the melting point. Compared with traditional gas-fired furnaces, induction melting furnaces have the advantages of fast heating speed, precise temperature control, and high melting efficiency, which can greatly improve the melting efficiency and melting quality of metal materials.

Heat Treatment of Steel Materials

The induction furnace for steel melting can also be used for heat treatment of steel and iron materials, such as quenching, tempering, annealing, etc. After the metal material is heated to a certain temperature, the structure and properties of the metal material can be changed by controlling the heating time and cooling rate. Induction melting furnace has the advantages of fast heating speed, precise temperature control, and uniform heating, which can improve the heat treatment effect and performance of metal materials.

Specification:

Specification and Technical Parameter
Model Power Input Voltage MF Frequency(HZ) Furnace Body Size
0.1T 100KW 3*380V 2500 φ630
0.25T 250KW 3*380V 1500 φ730
0.5T 400KW 3*380V 1000 φ1100
1T 800KW 3*660V 1000 φ1180
2T 1500KW 3*660V 500 φ1350
3T 2000KW 3*950V 500 φ1400
5T 3000KW 3*950V 500 φ1650
10T 6000KW 6*1250V 300 φ2000
15T 10000KW 6*1250V 300 φ2200
